Heavy duty and very solid construction, attractive design
and easy handling are the main attributes of the new
electronic torque wrench ELOTRONIC 2420. It has a serial
port to be connected to a PC or printer for documentation of
the achieved torque values. Easy input of the target torque
values via 4 button foil keys next to the big LCD-display.
Three LED units report the result of the tightening process:
range (green) and above the tolerance range (red). A
constant acoustical signal appears when the achieved
torque value is within the tolerance range. In case of
overload the signal will be interrupted as a warning signal.
It is possible with the reversible ratchet to use the torque
wrench for left and right hand use.
Available units: Nm, ft.lb., in.lb.
The 4 mignon batteries allow operations for approx. 100
hrs! The optional cable for the serial port (ELORA-No. 2420-
RS) includes the cable, 4 rechargeable batteries as well as
a power supply.
The information which can be transferred to the PC respect.
printer are the following:
• real (actual) torque value
• selected unit
• target value
• the selected tolerance range
• the result of real to target value (Under/Pass/Over)
for left and right hand use
with fine tooth ratchet 72 teeth, Display in Nm, ft.lb or in in.lb,
large 4 digits numerical display, acoustical and optical signal
via 3 LED,
2 different modes of operation (Track-Mode and Peak Hold
Mode), serial port for PC/Printer (RS232C 9600 BPS, 8,1,N).
Accuracy +/- 2%, with slip resistant handle

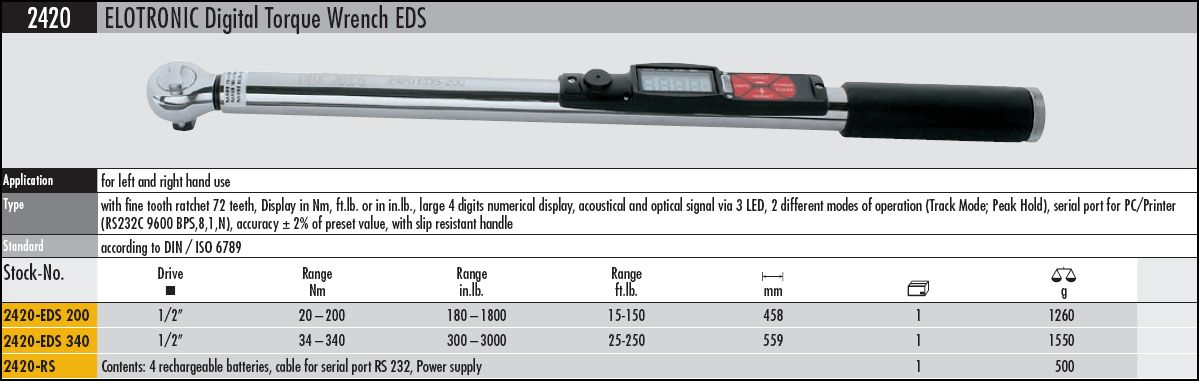

|ELORA-No. Drive Nm ft.lb. in.lb.
2420-EDS 200 1/2“ 20-200 15-150 180-1800
458 $ 1,160.72
2420-EDS 340 1/2“ 34-340 25-250 300-3000
559 $ 1,244.94
2420-RS $ 301.60
contents: 4 rechargeable batteries, cable for serial port
RS232, Power supply
||PDF Operating instructions
